How to measure aerospace rivet holes – 3D, non-contact and with micron-precision

如何測量航空航天鉚釘孔 - 微米級精度的3D非接觸式測量

Why should we care about measuring aircraft rivet holes?

我們?yōu)槭裁匆P(guān)心測量飛機鉚釘孔？

Rivets are the most common fastener used in aircraft assembly. The high-precision riveting process comprises drilling, counter sinking, and fastener installation. It is repeated hundreds of thousands of times on large aircraft – the largest passenger airliners are held together by over a million rivets!

鉚釘是飛機裝配中最常用的緊固件。高精度鉚接工藝包括鉆孔、锪孔和緊固件安裝。它在大型飛機上重復了數十萬次——最大的客機由超過一百萬個鉚釘固定在一起！

Since fasteners like rivets help ensure the structural integrity and aerodynamics of aircraft, their installation must be done not only fast, but also very precisely.
Strict quality control standards are set out for aircraft assembly facilities to ensure that aircraft panel joints can withstand the repeated stress of flight.

由于鉚釘?shù)染o固件有助于確保飛機的結構完整性和空氣動力學性能，因此它們的安裝不僅必須快速，而且必須非常精確。飛機裝配設施制定了嚴格的質量控制標準，以確保飛機面板接頭能夠承受飛行的反復應力。

Rivets help ensure the structural integrity and aerodynamics of aircraft

鉚釘有助于確保飛機的結構完整性和空氣動力學性能

Quality control (QC) of
drill-and-fill riveting process

鉆填鉚接工藝質量控制（QC）

Several aspects of the process are subject to QC inspections:

QC 檢查需要控制一下幾個方面：

The geometry of the aerospace rivet holes and countersinks must be within tight tolerances.

航空航天鉚釘孔和埋頭孔的幾何形狀必須在嚴格的公差范圍內。

Their inside diameters must be free of defects such as burrs or excessive chatter (rifling) that could cause structural weaknesses under the stress of flight.

它們的內徑必須沒有毛刺或過度顫動（膛線）等缺陷，這些缺陷可能會在飛行壓力下導致結構缺陷。

Flushness of rivet head with the surface is measured to ensure acceptable level of aerodynamic drag.

測量鉚釘頭與表面的齊平度以確保可接受的氣動阻力水平。

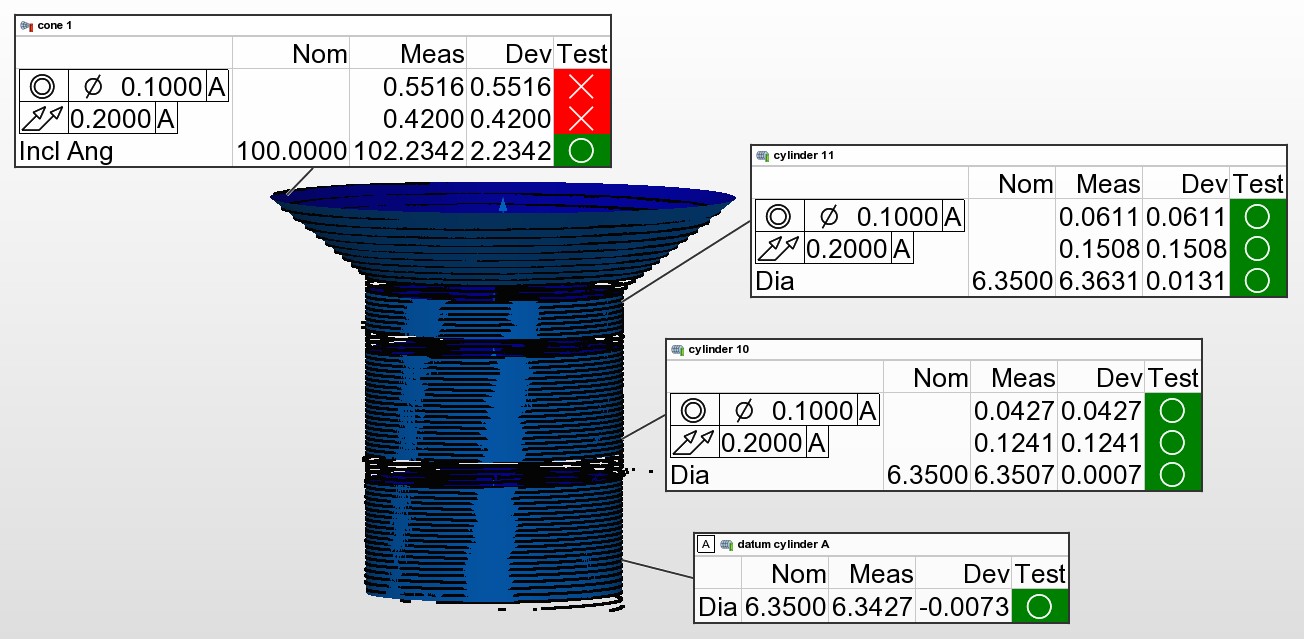

GD&T parameters on this diagram were measured within several seconds. The callout parameters shown include the rivet hole diameter, the concentricity of the rivet bore hole and countersink, runout, and the countersink included angle.

此圖上的 GD&T 參數是在幾秒鐘內測量的。顯示的標注參數包括鉚釘孔直徑、鉚釘孔和埋頭孔的同心度、跳動以及埋頭孔夾角。

Measurements delivered by the RIVETINSPECT system

RIVETINSPECT 系統提供的測量結果

NOVACAMTM
RIVETINSPECTTM
3D metrology systems deliver all the required measurements to enable aircraft assemblers to integrate 100% inspection right into their automated drill-and-fill process.
Integrated with our aerospace assembly machines (robots, CNCs or gantrys), the RIVETINSPECT system delivers:

NOVACAM
TM
RIVETINSPECT
TM
3D 計量系統提供所有必需的測量來確保飛機裝配商能夠?qū)?100% 檢查直接集成到他們的自動化鉆孔和填充過程中。RIVETINSPECT 系統與我們的航空航天裝配機械（機器人、CNC 或龍門架）集成，可提供：

Dimensional measurements
– diameter, ID length (grip length, countersink depth, etc.), cylindricity, roundness (circularity), conicity, taper, concentricity of rivet hole and countersink, included angle of countersink, angle between rivet hole and countersink axes, perpendicularity of rivet hole axis to surface plane, radius of ID grooves, rivet hole axial straightness, as well as flushness of the installed rivet head.

尺寸測量- 直徑、內徑長度（夾持長度、埋頭孔深度等）、圓柱度、圓度（圓度）、錐度、錐度、鉚釘孔和埋頭孔的同心度、埋頭孔的夾角、鉚釘孔和埋頭孔軸之間的角度、垂直度鉚釘孔軸線與表面平面的距離、內徑槽的半徑、鉚釘孔軸向直線度以及安裝的鉚釘頭的齊平度。

Roughness
measurements

粗糙度測量

Detection and visualization of
defects
such as rifling (chatter), burrs, interlaminar gaps, offsets, tool-mark defects, dents.

缺陷的檢測和可視化，例如膛線（顫振）、毛刺、層間間隙、偏移、工具痕跡缺陷、凹痕。

In most cases (and depending on rivet hole dimensions) all the above measurements can be acquired with the same probe and within the same scan as dimensional measurements.

在大多數情況下（并且取決于鉚釘孔尺寸）所有上述測量都可以使用相同的探頭在與尺寸測量的同一掃描中獲得。

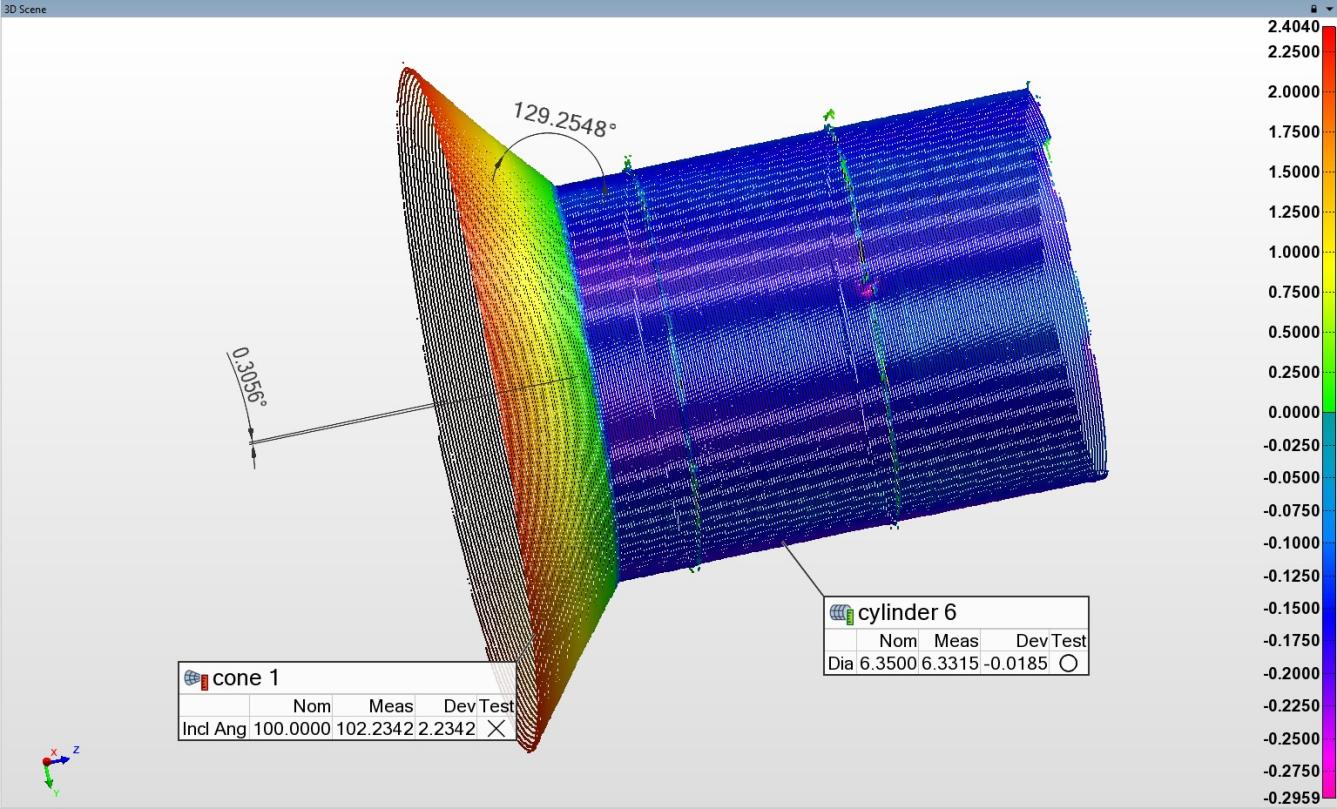

With this rivet ID, the following were measured: inside diameter, countersink included angle, angle between the rivet hole and countersink, and angle between the countersink and rivet hole axes.

使用此鉚釘 ID，測量以下內容：內徑、埋頭孔夾角、鉚釘孔與埋頭孔之間的角度以及埋頭孔與鉚釘孔軸線之間的角度。

Key features and benefits of the RIVETINSPECT

RIVETINSPECT 的主要特點和優勢

To support today’s increasingly data driven, robotized and automated drill-and-fill riveting process, NOVACAM RIVETINSPECT system offers:

為了支持當今日益數據驅動、機器人化和自動化的鉆孔和填充鉚接工藝，NOVACAM RIVETINSPECT 系統提供：

Non-contact 3D measurement of hard to access rivet hole IDs

難以接近的鉚釘孔 ID 的非接觸式 3D 測量

Fast dimensional measurements, typically a few seconds per hole

快速尺寸測量，通常每個孔只需幾秒鐘

Ability to also measure roughness and defects with the same probe

還能夠使用同一探頭測量粗糙度和缺陷

Ability to measure different materials (CFRP, aluminum, titanium alloys, etc.) within the same scan

能夠在同一次掃描中測量不同材料（CFRP、鋁、鈦合金等）

Easy integration with robots for deployment right on the plant floor

與機器人輕松集成，以便直接部署在工廠車間

Immunity to the effects of ambient lighting and air perturbation.

不受環境照明和空氣擾動的影響。

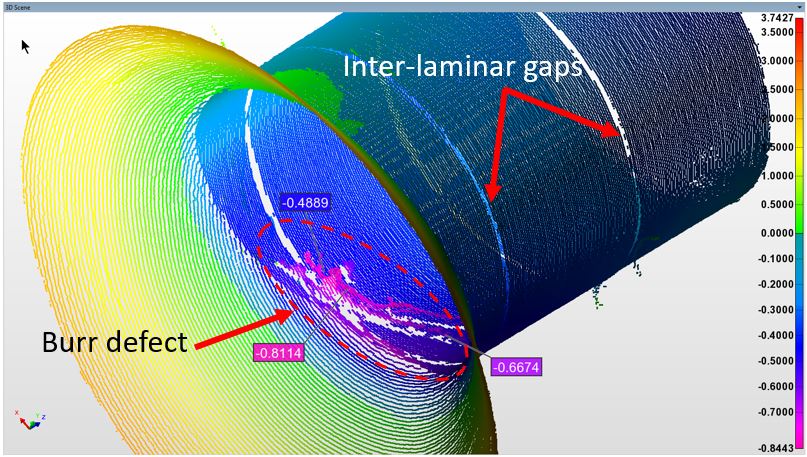

Scanned ID of a rivet hole and countersink shown as 3D deviation map from cylinder. A burr defect and inter-laminar gaps are visible on the rivet hole ID.

鉚釘孔和埋頭孔的掃描 ID，顯示為圓柱體的 3D 偏差圖。在鉚釘孔 ID 上可以看到毛刺缺陷和層間間隙。

文件：AN-THICKNESS-1.2（2021-06-03）
